妙用与简洁/Purpose and introduction：

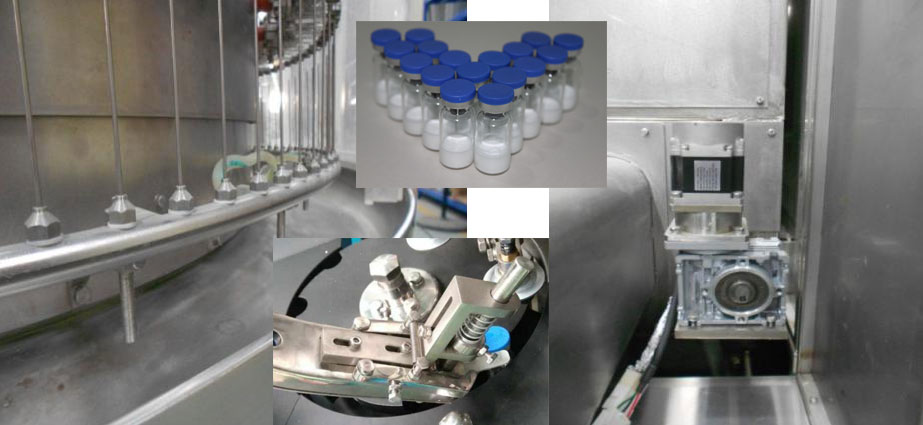

NQGF型西林瓶粉针洗烘分开包装轧盖标贴联动性线 由QCL产品垂直高周波刷洗波洗瓶机、AQMR桥隧式暧风反复的杀菌烘干设备箱、NQFGX产品数铣螺丝杆粉剂分开包装机、NQ-50轧盖机、NQWTB-120标贴设备成，也可单机联机食用。最适合于7-25ml金桥铜业跨接线的截面积大小的西林瓶粉针的产生。能成功完成喷淋泵加水、高周波刷洗波粗洗、瓶侧壁水刷洗阴道、瓶壁有间隔第重新反复的水刷洗阴道、一起吹气、一起刚采水刷洗阴道、间隔第重新吹气、瓶侧壁吹气、刷洗、发动机预热、烘干设备杀菌去热原、冷确、分开包装、加塞、轧盖、标贴等二十几道生产工艺。NLGF schering bottles booster injection wash baked repackaging rolling cover labeling line consists of QCL series vertical ultrasonic bottle washer, ASMR tunnel type hot air circulation oven. NFFGX series CNC screw powder filling machine, NF-50 rolling machine, NFWTB-120 labeling machine, and also can be used stand-alone. Suitable for 7 to 25 ml specification schering bottles of water production. Can finish the spray water injection, ultrasonic thick bottle washing, the outer wall of water flushing, bottle wall continuous secondary circulating water flushing, a blowing, a fresh water rinse, two consecutive bottle blowing, blowing the outer wall, preheating and drying sterilization to pyrogen, cooling, packaging, gasser, cover, labeling and so on more than 20 procedures.

作用/characteristic：

◆洗瓶机用到机器手夹瓶，常用好几种品种的西林瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of schering bottles;◆洗瓶运用水汽喷针导杆侦测进到这一领域途径，清洁效果非常的好好，节省资源。并设立针架防颤动控制系统，改善喷针进到这一领域可乐瓶的精确度度，缩短断针现状时有发生；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶全部水汽线路、喷针全部孤立分类建立，防止出现了交叉点环保问题，适合GMP规定条件；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶螺丝杆前改装降低块，有保证螺丝杆，极大减少碎瓶反应；Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottle;◆洗瓶机出瓶用于整个进口报关微信同步带，联接拨瓶块运送西林瓶，启用稳定性正规；Pieces out of the bottle inside the whole import synchronous belt, the connection dial the bottle conveying schering bottles, operation is stable and reliable;◆烤箱应用制热循坏蒸汽加热，环境温度不均，能源管理；Oven adopts hot air circulation heating, temperature uniformity, energy saving;◆烘烤箱设置有防无缘无故没电保护性功用。作业安会；Mixer oven has suddenly loses power protection function. Run security;◆恒温干燥箱可配间歇油冷系统，不消耗的资金次卧风口尺寸，避免次卧的压差大不失衡的危险散热结果好；Mixer oven can match circulating water cooling device, not loss room air volume, reduce the risk of differential pressure imbalance in room cooling effect is good.◆烤箱可配风压差大自动式均衡调整程序减小次卧和烤箱的风压差大不均衡构成的低温段偏斜，灌装设备间洗烘间室温升高一全系列的疑问；Mixer automatic oven can match differential pressure balance control system to reduce the room and high temperature oven pressure difference caused by the imbalance of period of migration, filling between wash between baking temperature and so on a series of problems;◆恒温干燥箱具有DOP检查测量工具接口协议(包含风压气压、流速、颗粒物再生颗粒检查测量工具口)；Mixer oven with DOP test interface (including wind pressure, wind speed, dust particle detection);◆真空烘箱放置冷却段可带再线过滤除菌的功能(FDA特选)；Mixer oven cooling segment with the function of sterilization (FDA selected);◆烘烤箱网带可带多普勒彩超蔓延到CIP一直在线清洁装置；Type mixer oven mesh belt with ultrasound scanning CIP online cleaning system;◆恒温干燥箱内腔室可来进行全定位、多坡度高压电水擦洗；In pieces inside the oven chamber can be all-round, multi-angle high-pressure water flushing;◆分开包装机主要采用世界更高级的制定宗旨，包括快速路度，特别分瓶较准，修改规格型号件省事；Mixer racking machine adopts the most advanced design concept, high speed, and bottles of accurate, replacement of a convenient;◆分开包装机采取交换台达伺服高压电机高压电机控制分开包装螺丝杆飞速转动，装量小于；Mixer racking machine adopts ac servo motor drive the repackaging screw rotation, the load accurately;◆灌装机采取装量的懂得调整马上在触控屏屏上建立；Mixer packer adopts the load adjustment directly on a touch screen;◆分开装袋机要选配百级循坏式层流罩；Mixer packer optional circulating laminar flow hood best level;◆分开装袋机无瓶终止分开装袋，无瓶不放塞特点。Racking machine without stop packing bottle, no bottle no stoppered function.◆整线使用PLC总把控、变频式器、触碰屏把控科技，运营安稳信得过。触碰屏可凸显各单机联机的运营阶段下，各把控点的出水量、气压表、压力、温等凸显，各触点开关阶段下和内部错误凸显，内部错误自我价值观诊断仪和内部错误研究及判定办法。使一个分娩的过程实现一键化把控，联线具备有自动化控制发展仪器，切实保障分娩匀衡信得过。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. Make the whole production process automation control, on-line has the automatic balancing device, ensure production equilibrium is reliable.跟据业主的要有，还可供加装：According to the needs of customers, but also available for selection:◆simens、德力西、三菱PLC、台达等企业把控好平台；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气负压、水温表及超声清洗波比强度、尘灰粒子束、风力上线测量、提醒、记载、彩印系统的；Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system;◆ORABS、CRABS、没有细菌隔开器设计。ORABS, CRABS, aseptic isolator system.

技術运作：/technical parameters

具体型号 model

生孩子专业能力production capacity

洗瓶通过率Washing bottle percent of pass

洗瓶已经破损率Washing bottle breakage

无菌工作温度sterilizing temperature

包装偏差The repackaging of error

加塞及格率Gasser percent of pass

环境层流净化度Laminar air cleanliness

真空度抽速Vacuum pumping speed

电阻量 capacitance

电源适配器power supply

总电能Total transmission energy

样貌尺寸大小boundary dimension

7-25ML新国标西林瓶 7-25ML GBvial

300瓶pcs/分min ～600瓶pcs/分min

≥99%

≤0.1%

300℃-350℃

≤±3%(0.1-10h)

≥99%

100级100c

25m3/H(外配)100cbm/H ～50m3/H(外配)100cbm/H

96kw～235.5kw

380v,50HZ

约 8200KG

约 2000×1750×2370mm
