的主要用途与概况：/Purpose and introduction

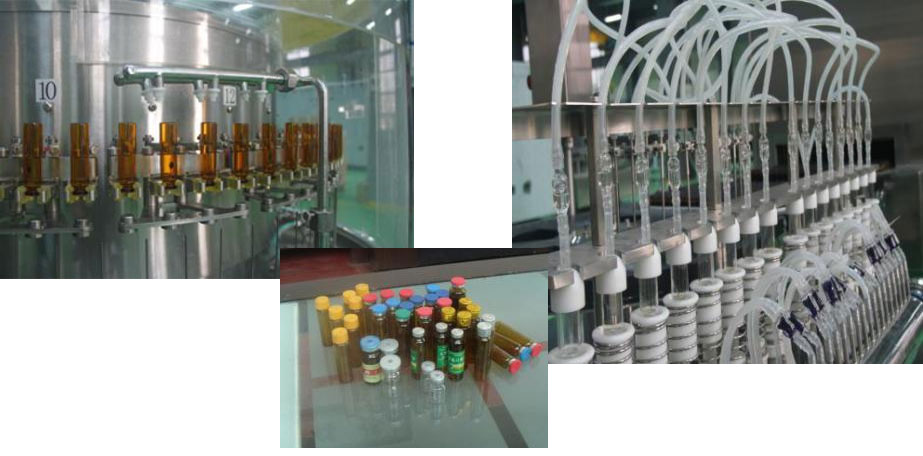

服用液洗烘灌轧联动机制机制线由垂直高周波波洗瓶机、队道式暖风 反复的杀菌恒温干燥箱、服用液包装轧盖机等形成，符合于 5-30ml 等有所不同规 格服用液瓶的生产销售加工。可做好对医疗耗材生产销售加工中安瓿瓶淋水、高周波波洗涤、冲水、充 气、风干杀菌、降温、包装、轧盖等加工工艺方法步骤的联动机制机制电脑运行。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

特性:/characteristic

◆洗瓶机用机械厂手夹瓶，可用多个产品规格的小瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶选择水蒸汽喷针往复运动监视放入途径，的洗涤结果好，节约资源能源开发。并配有针架防发抖配置，的提升喷针放入空瓶的准度度，减低断针状况会发生；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶整水蒸汽管道阀门、喷针非常独特离婚，规避了相互废弃物，按照GMP规范化特殊要求；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶螺旋轴前还可以加装加载块，有防护螺旋轴，极大减少碎瓶能力Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶通过纵向国外进口微信同步带，连结拨块传送内服液，程序运行稳定正规正规In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆干燥箱选择红外线升温管，装饰管升温管两层升温气温平均性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆分装轧盖机先选配陶瓷厂家泵、不锈钢装饰管吗泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆灌装生产线无瓶止灌，无瓶不轧盖工作。Pieces filling without bottle filling, no bottle no rolling function.◆整线使用PLC总把控好、变頻器、凸显屏屏把控好技术设备，操作稳定性高安全。凸显屏屏可凸显各单机版的操作模式，各把控好点的压差、汽压、静压、温度因素等凸显，各面板开关模式和错误代码凸显，错误代码个人能力疾病诊断和错误代码剖析及祛除的方式。使正个工作进程可达到自动的化把控好，联线存在三机自动化动平衡机系统设计，担保工作平均安全。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.按照其的客户的要，还可供配选：According to the needs of customers, but also available for selection:◆PLC、德力西、三菱PLC、台达等该品牌管理模式；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气学习压力、水溫及超声心动图波抗弯强度、污物颗粒、风速等级上线验测、报警声音、记下、网页打印系统。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、灭菌隔绝器机系统。Mixer ORABS, CRABS, aseptic isolator system.

技术性产品参数：technical parameters

适宜外形尺寸Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
灌装生产线的精密度Filling accuracy(%)	≤ ± 2.5
罐装头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖不成品率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
