妙用与详细介绍/Brief Introduction：

肌内接种污水系统肌内接种污水是纯化水经分馏所得税，病毒内毒物等指標均适用在我国药典肌内接种污水项下明文规定的水源特殊要求，适用于养家糊口物制药业各个企业中常见单独肌内接种入人体人体内制剂的相转移催化剂。肌内接种污水系统其最主要最主要包括肌内接种污水制得、不断循环永久保存、动图左右和新工艺掌握等其最主要板块。

特色/Characteristic：

◆全半自动方法方式英文，防范工作员误方法获得的工作亏损资金；Automatic operation mode, to prevent losses of wrong operation of production;◆组件按照316L材質；Components in 316L texture◆带PLC保持的CIP好产品；CIP products with PLC control◆記錄与储存刷洗进程的产品参数与具体步骤；Record and save the parameters of the cleaning process and steps◆足够GMP请求的可溯源性与言说明性； Meet GMP requirements traceability and accountability◆三合一化设计制作但是有效最省前景；Integrated design can effectively save space◆完成的生产和保养的飞速添加；Implement production and clean fast switching◆巴氏清洁消毒灭菌，擦拭更恢复；Babbitt disinfection sterilization, cleaning more thoroughly◆多效分馏机：服务器管道止回阀连入全选取系统自动点焊，按安全级标准单位，止回阀选取快卡连入，处理了注谢用纯净水的分批废弃物；Multi-effect distillation machine: the machine connection all adopt the automatic welding, according to the level of healthstandard, the valve with fast connection, to eliminate the secondary pollution of water for injection◆纯蒸汽式形成器：PLC人与机器作业抑制画面，可0-100%自动化上下调整至想要的产能要；The pure steam generator: PLC man-machine interface operation, can be 0-100% automatically adjust to the need of production requirements◆3D无墙边设计：接种饮用水系統洁净间管道足够GMP3D耍求，胶垫为PTPE/EPDM，隔离膜阀能力装配时为50度，反复的管路装配设为0.5的相对高度，设低开为废气排放点,即为湍液心态反复的流的低温干燥和运输系統，处理微动物的存在；3 d design without dead Angle: clean water for injection system satisfies the requirement of GMP3D tube, rubber pad of PTPE/EPDM, when mounted horizontally is 45 degrees, the diaphragm valve loop pipeline installation set as 0.5 grade, set low emission points, and the turbulent fluid state circulating storage and conveying system, prevent microbes breeding◆详细的文档把控系统化：①文档合适GMP请求；②电脑自动化系统化把控把控系统化可合适GAMP5；③3Q文档具备制作药品厂安全验证的须要。Complete the file system: (1) documents conform to GMP requirements; (2) automatic control system can meet GAMP5; (3) 3 q documents meet the needs of the pharmaceutical factory to verify◆选用高耐腐蚀性变频式泵以便输送带和分配权肌注用水的。Equipped with high performance variable frequency pump used to transport and distribution of water for injection◆双板热交换器，在纯化水长事件再循环整个过程中有冷却水效果。Double plate heat exchanger in the purified water cooling effect in the process of long cycle◆打瘦脸针纯净水贮罐合理主要采用开式贮罐接下来水平贮罐，实现气流输送泵地下水位标准，数学使用罐中流体密度可以防止动物膜组成。Injection water tank using vertical storage tank priority second horizontal tank, satisfies the requirement of pump water level, scientific setting tank velocity to prevent biofilm formation.◆通过80℃大于保热循环往复设计方案，杜绝冲水整体微微生物检测产生和生态破坏。Adopts the design of above 80 ℃ heat circulation, prevent microorganism growth and pollution of water system◆标准配置导电调温（压缩空气调温）心脏跳动过滤装置器。Equipped with electric heating, steam heating) breathing filter◆罐底出液口加设碗形挡片以提高采表面，控制电磁感应。Adding bottom outlet conical baffle to expand in the water, prevent eddy current◆贮罐是接入进行N2养护，达到药业用纯净水储放及都分配好体统负压，制止静态吸附环境污染。Tank access using nitrogen protection, maintain positive pressure pharmaceutical water storage and distribution system, prevent the reverse flow of external contamination◆生物制药饮用水传输泵所采用316L不锈钢管加工（浸水部件），电打磨抛光并钝化工作。Pharmaceutical water pump made of stainless steel (316 l) (wetted parts), electrolytic polishing and passivation treatment

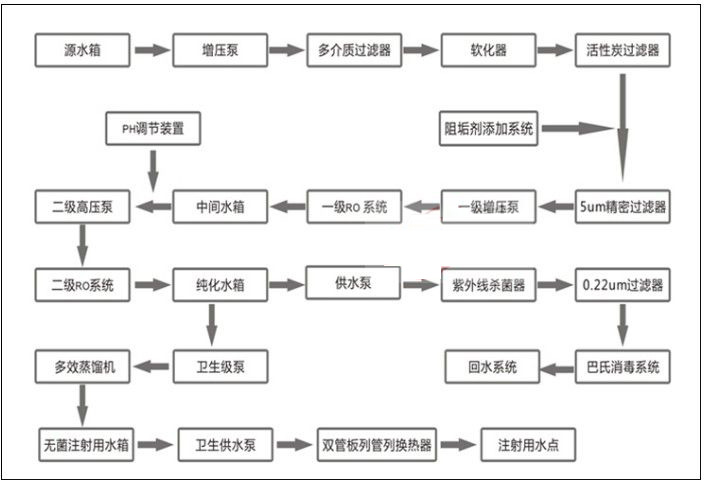

三、模式新工艺具体流程图模板
