作用与概述/Brief Introduction：

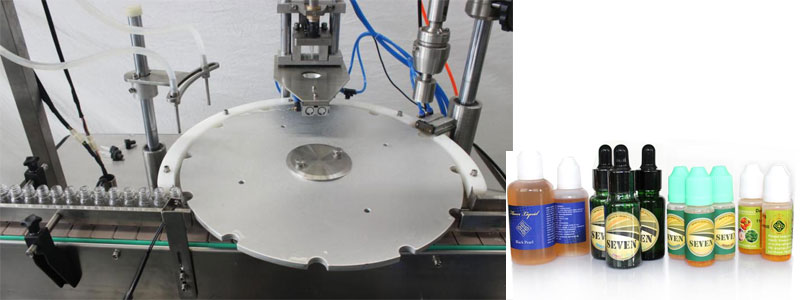

该机应采用2-30ML各种各样质量的圆圈扁形可塑料或有机瓶子的眼蓝药水分装.该机由高爆率高凸轮轴轴量程平台保证量程等分盘准确位置上塞上盖;加的速度度凸轮轴轴转动保证旋盖头的升缩;恒扭力旋盖;肠蠕动泵的计量检测分装;手触屏操纵.无瓶不分装,没有加内塞,外盖.具准确位置准确,转动有序,保养玻璃瓶盖,的计量检测准.控制简约等的优势。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

特征 /Characteristic：

◆微手提电脑因素、装量精密、运行便捷。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆服务器钻速可开展无极定频变速。the mainframe running speed is stepless frequency conversion.◆生育量智能按量调控。the product quantity can be controlled. ◆不同报警表示特点(如低大气压力。无包装、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆智能停止时功能模块，对同一个轨道列车出现了持续无装灌、无内塞具体情况可智能停止时。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

技术水平参数表/Main Technical Parameters：

用于年纪Filling Volume	2-30ml
种植专业能力Productivity	30-60瓶/分&nb🥃sp; 70-100瓶/分30-60bottles/min    70-100bottles/min
装灌表面粗糙度Filling Precision	≤±1%
交流电源 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
会自动上塞率Stoppering rate	≥99%
源Air Supply	1.3 m3/h    0.4-0.8Mpa
电功率 Power	2.0 kw
广州POS机总重量Weight	550 kg
外观长度Dimension	1800*1000*1500mm
