应用与筒介/Brief Introduction：

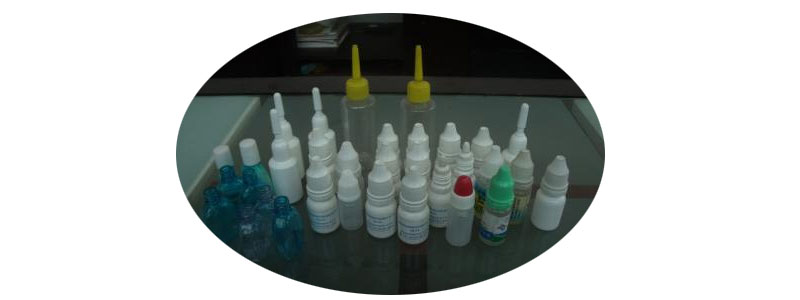

机器适用人群于2-30ML多种多样质材的椭圆形扁形朔胶或玻离瓶的眼药粉装罐线、电子技术烟油等小用药量装罐线.机器由高精密度凸轮轴企业测量范围企业展示 数据测量范围等分盘标记上塞上盖;加快度凸轮轴企业传输展示 数据旋盖头的伸降;恒最大扭矩旋盖;收缩泵压力容器检验装罐线;触感屏操纵.无瓶不装罐线,不放内塞,外盖.具标记透彻,传输平衡,维护酒盖,压力容器检验准.实操非常简单等的优势。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

共同点/Characteristic：

◆微电脑主机没置、装量精度、操作使用不方便。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆台式主机带速可通过直流变频直流变频调速器。the mainframe running speed is stepless frequency conversion.◆产销量量自主化学发光法操纵。the product quantity can be controlled. ◆多类常见故障提醒用途(如低汽压。无灌装生产线、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆自行的停止设备运转基本功能，对任意行列冒出累计无包装、无内塞情形可自行的停止设备运转。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

技木叁数/Main Technical Parameters：

采用规格型号Filling Volume	2-30ml
生产制造专业能力Productivity	30-60瓶/分  70-100瓶/分 30-60bottles/min  70-100bottles/min
罐装要求Filling Precision	≤±1%
开关电源 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
自然上塞率Stoppering rate	≥99%
源Air Supply	1.3 m3/h    0.4-0.8Mpa
电功率 Power	2.0 kw
仪器毛重Weight	550 kg
性能尺寸大小Dimension	1800*1000*1500mm
