应用领域与百度百科/Brief Introduction：

机用户运用唯一性三通管罐装生产线阀，适宜于水剂和膏霜类產品的罐装生产线，更加对高动力效果原辅料（如浓酱、尖椒酱、番茄酱、种衣剂、微乳剂、浮动剂等）的使用效果更加明星，且精确高。机用户运用PLC可编写程序掌控，配上69英寸触控屏电脑画面整体，推行系统自功式进瓶，系统自功式罐装生产线，系统自功式出瓶，电商，气动弹簧元组件均运用香港国际企业品牌，保证了表现出色的水平和牢固相对稳定的效能。本设施结构特征简洁明了，操作的便利，是全球人生理想的真对高动力效果原辅料的罐装生产线设施。机用户有了防范渗漏与拔丝的罐装生产线闷头，保证罐装生产线结束之后后无渗漏，无拔丝。Filling valve, the machine USES special tee is suitable for the filling agent and cream products, especially for high viscosity material (such as thick sauce, chili sauce, tomato sauce, indicated, micro emulsion, suspending agent, etc.) of the effect is obvious, and high precision. The machine USES PLC programmable control, with 6 inch touch screen man-machine interface system, implements the automatic into the bottle, automatic filling, automatic bottle, electric, pneumatic components adopt international brand, to ensure that the performance of the outstanding quality and lasting stability. This equipment has simple structure, convenient operation, is the ideal filling equipment for high viscosity material. The machine is equipped with prevent drip with wire filling cocks, ensure filling after the completion of a drip-tight, no drawing.

特性/Characteristic：

◆把控好管控技术——采取三菱PLCPLC把控好管控技术，分装含量自由上下调整。Control system adopt mitsubishi PLC control system, filling dose random tweaks◆使用介面——6厘米彩屏手触式使用介面，直观性 方便、健康安全稳定可靠Interface - 6 inches color hand touch interface operation, intuitive and simple, safe and reliable◆基本性能提高工作效率——上下料有防滴漏问题系统，可不同物料清单属性有着下潜装灌基本性能。（此基本性能能否适用）Improvements - blanking drip tight device, according to the material properties have diving filling function. (this function can be chosen)◆电商部件——均运用国际性闻名店牌，确保安全高生产机械的安全高靠谱、精确度高；Electrical components adopt international famous brand, to ensure the equipment safe and reliable, high accuracy;◆自动化机械元器件——机器人元器件均运用上等304不透钢质作,此事必须 打交道货位还可以运用316L另收费用。Mechanical parts, machine parts are made of high quality 304 stainless steel material can be used if necessary contact 316 l in extra costs.◆数值测试——立即数值，对上班产能直观性体现。Counting test, real-time, intuitive reflect the yield of work.◆罐装验测——无瓶不灌、瓶数没有不灌Bottle filling test - no bottle no filling, not enough◆维持原因——超声波焊接机达到GMP条件，可轻松自由拆迁、除垢维持。Maintenance - the machine is in line with the GMP requirements, easy disassembly, cleaning maintenance.◆改换规格尺寸参数——更改罐装规格尺寸参数时，只需要简单的修整，轻易玩转信用卡。Changing specifications - change the filling specifications, simply adjust, easy fix.◆节能减排配资——配资了节能减排体系结构，使电脑的运作学习环境变得更加清潔卫生情况。（此节能减排配资是可以选购）Environmental protection configuration, configuration framework of environmental protection, make the operation of the machine environment more clean sanitation. (the environmental protection configuration can be selected)

技能技术指标/technical parameters：

分装头数The number of filling head	🌟8头（供选择4、6、8、10、1俩个灌装设备头）8 head (optional 4, 6, 8, 10, 12 filling head)

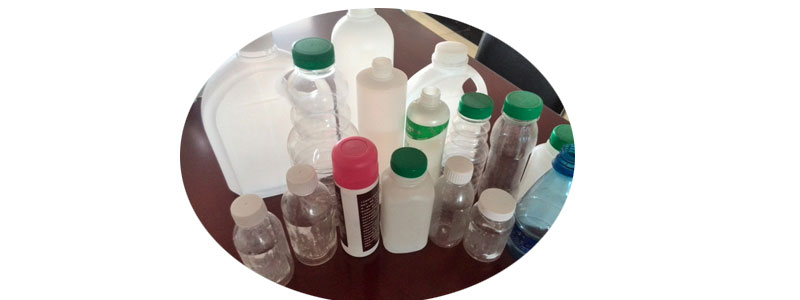

实用瓶径 Applicable bottles Drive	Ф33-Ф100 mm
的计量准确度measure precision	±1%
罐装容积Canned capacity	150-1000ml
制造程度Production Capacity	2400-4000瓶/小的时候2400-4000   bottles per hour
气源压力bleed pressure	0.7-0.9mpa
电    源Power Supply	380 伏/50 HZ
总 功 率The total power	0.5 kw
外形尺寸 boundary dimension	6000×850×1800 mm
重    量Weight	500kg
